Question 1

How do I set up drawing units, scale, and limits in AutoCAD before starting a new project?

Accepted Answer

Type UNITS to set Architectural, Decimal, or Engineering units and set precision. Type LIMITS to set lower-left (0,0) and upper-right coordinates. Use ZOOM → A to fit limits. Decide your plotting scale and use annotative objects for text and dimensions.

Question 2

What is the standard layer naming convention (AIA/NCS) used in architectural CAD drawings?

Accepted Answer

AIA standard: A- for architectural (A-WALL, A-DOOR), C- for civil, E- for electrical (E-LIGHT, E-POWER), M- for mechanical (M-DUCT, M-PIPE), S- for structural (S-BEAM, S-COLUMN). NCS organizes layers by discipline, function, and status for collaboration.

Question 3

How do I create and manage annotative dimensions and text that scale automatically with the viewport?

Accepted Answer

Enable Annotative in the properties when creating text or dimensions. Right-click → Annotative Object Scale → add viewport scales. Text and dimensions automatically adjust in each viewport according to the assigned scale.

Question 4

What is the difference between Model Space and Paper Space, and how do I set up a sheet layout for printing?

Accepted Answer

Model Space is for full-size drafting and modeling. Paper Space is for scaled viewports for plotting. To set up a sheet: open a layout tab, insert a title block, create viewports (MV), assign viewport scale, lock the viewport, and plot from Paper Space.

Question 5

How do I create, insert, and edit blocks and external references (Xrefs) in an architectural drawing set?

Accepted Answer

Blocks: use BLOCK to create, INSERT to place, BEDIT to edit. Xrefs: attach entire drawings with XREF → Attach DWG; changes in source files update automatically in the master drawing.

Question 6

What are the required drawings in a full architectural construction document set (CD set)?

Accepted Answer

A CD set usually includes: Cover Sheet/Title Sheet, Site Plan, Floor Plans, Reflected Ceiling Plans, Roof Plan, Exterior Elevations, Building Sections, Wall Sections/Details, Schedules, MEP Plans, Structural Plans, General Notes & Specifications.

Question 7

What is the difference between AutoCAD, AutoCAD Architecture, and Revit, and when should I use each?

Accepted Answer

AutoCAD is general-purpose 2D/3D CAD. AutoCAD Architecture adds architectural tools and templates for drafting. Revit is BIM software for integrated design, documentation, and coordination. Use AutoCAD for simple 2D drafting, AutoCAD Architecture for architectural drafting, and Revit for full building BIM workflows.

Question 8

What line weights and linetypes are standard in architectural and engineering drafting?

Accepted Answer

Line weights: Walls 0.35–0.5 mm, Doors/Windows 0.25 mm, Dimensions/Text 0.18–0.25 mm. Linetypes: Continuous for walls/outlines, Dashed for hidden or overhead, Centerline for axes/grids, Dotted for services or site features.

Question 9

What are the most essential AutoCAD keyboard shortcuts and commands every drafter should know?

Accepted Answer

Essential shortcuts: L (Line), PL (Polyline), C (Circle), REC (Rectangle), OFFSET, TR (Trim), EX (Extend), M (Move), CO (Copy), DIM (Dimension), LA (Layer Manager), MV (Viewports), B (Block).

Question 10

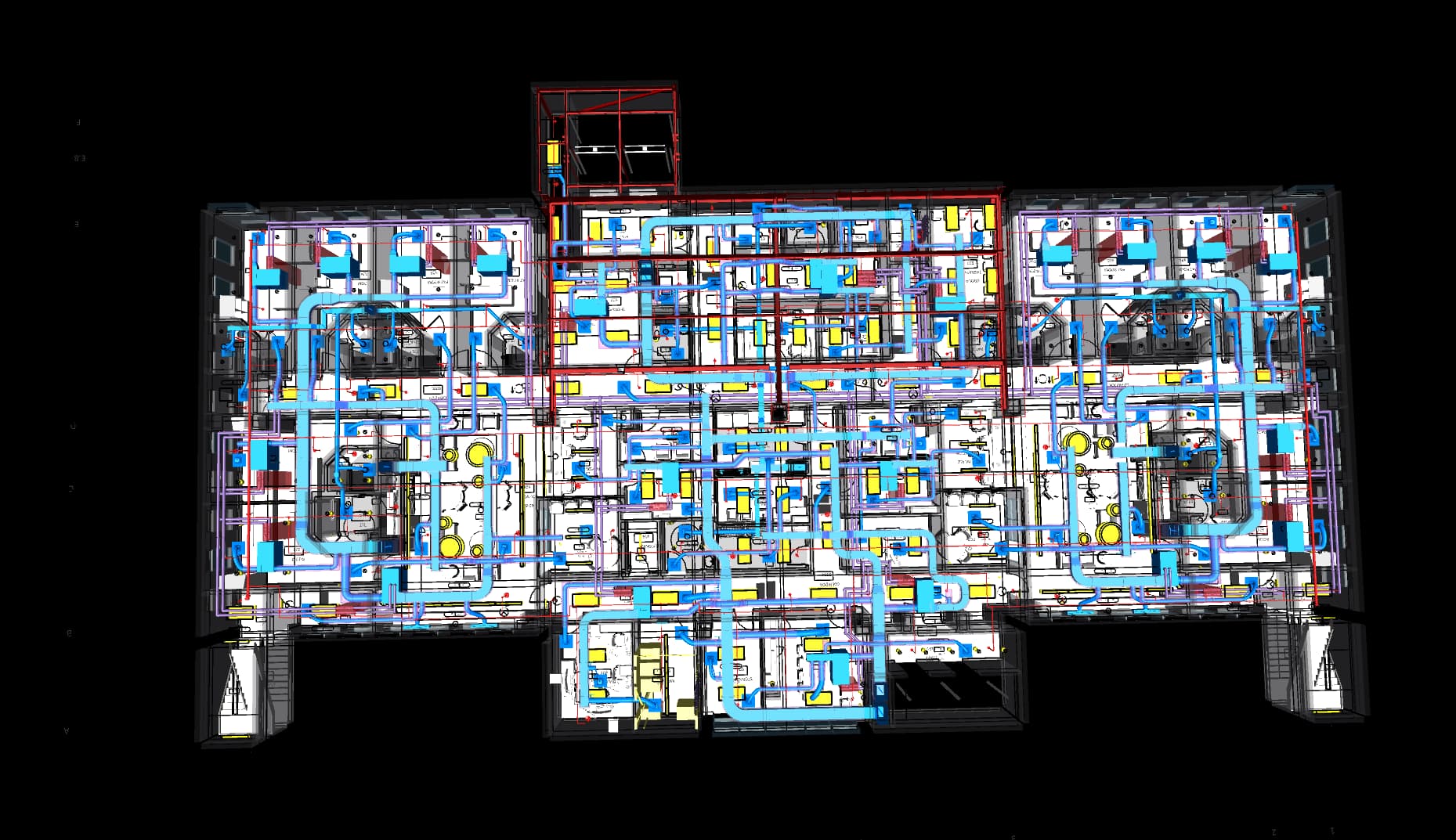

How are structural and MEP (mechanical, electrical, plumbing) drawings coordinated with architectural drawings in CAD?

Accepted Answer

Use Xrefs to link architectural, structural, and MEP drawings. Perform clash detection using layer visibility, 3D views, or BIM tools. Maintain consistent units, scales, and layer naming. Lock viewports and coordinate dimensions and clearances for accurate construction.

Your Trusted Partner to Outsource CAD Drafting with Confidence

Drafting Buddies – Precision in Every Line!Drafting Buddies – Precision
in Every Line!

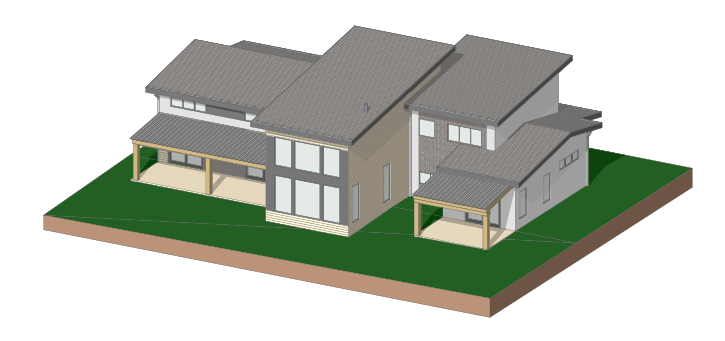

Our Services

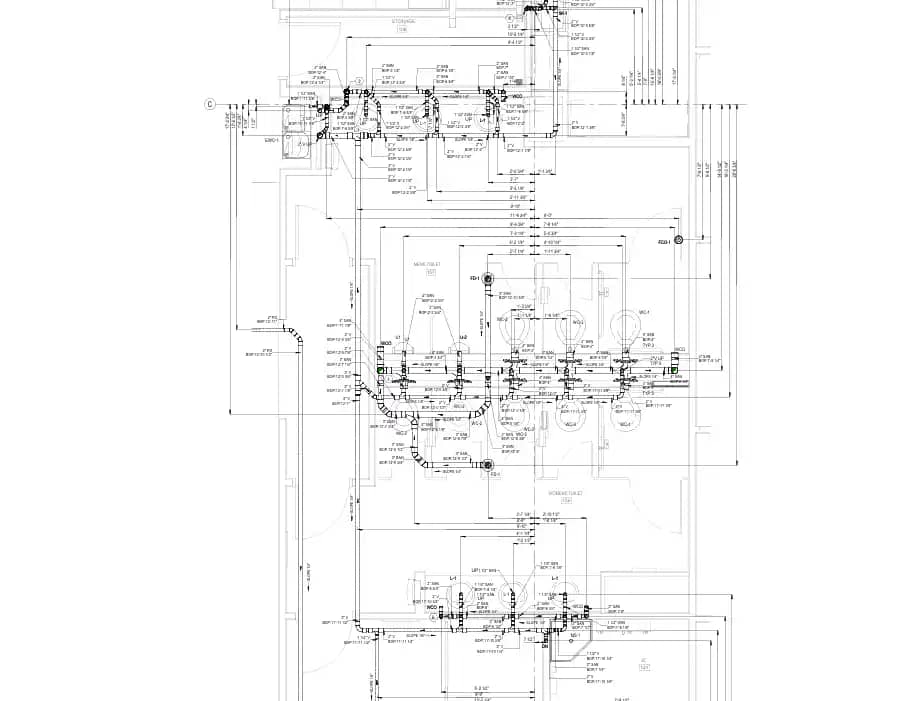

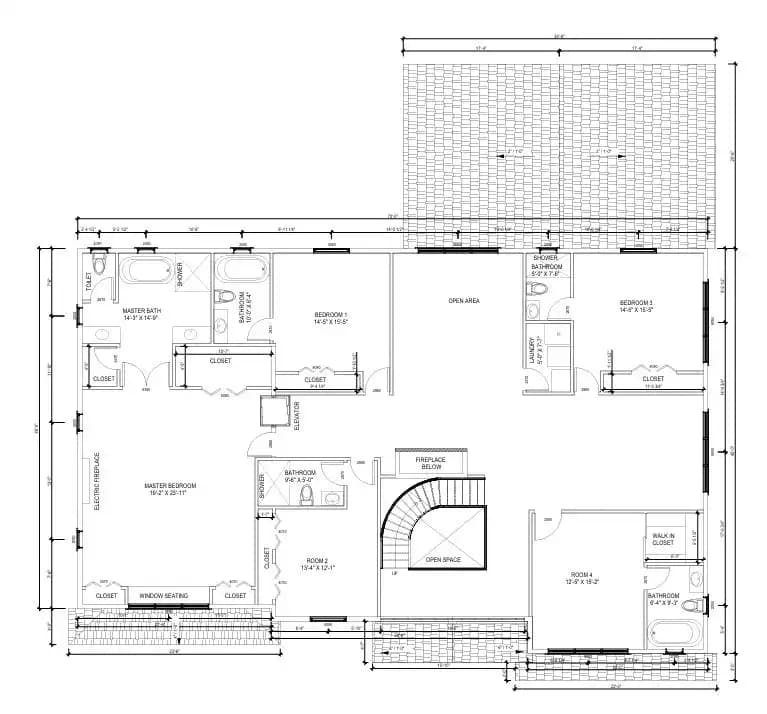

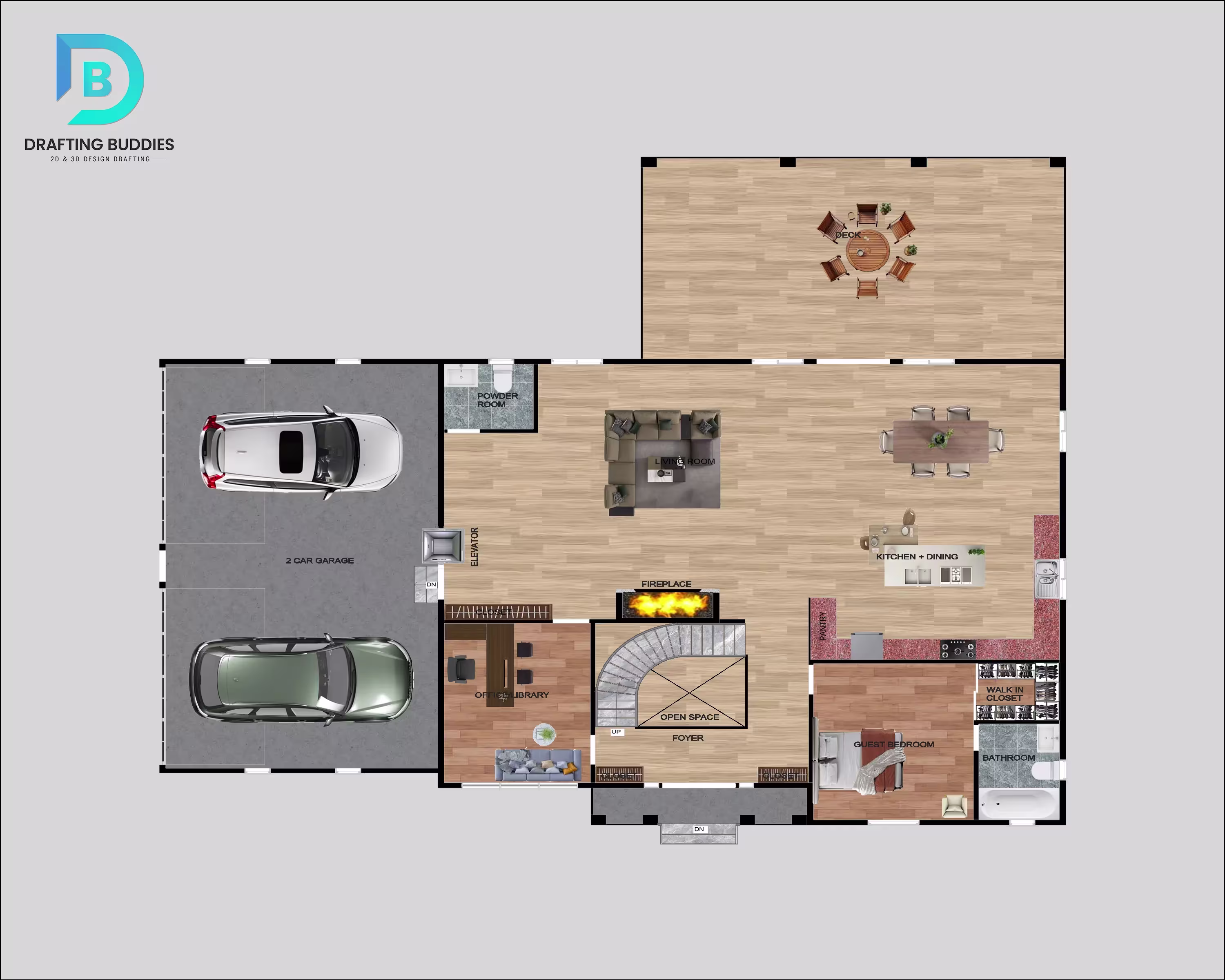

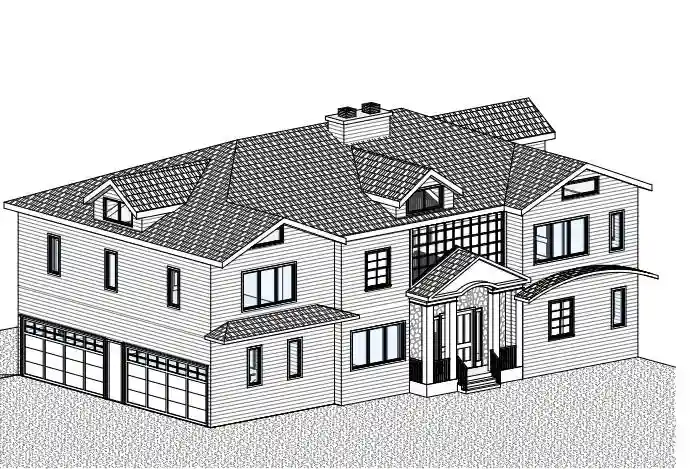

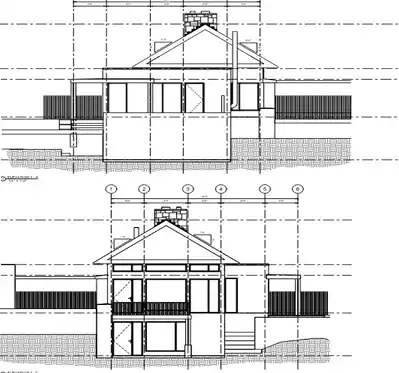

2D Drafting
